PTS1-16I20-1A10E-H1
Product description: Dual power automatic switch is divided into two series, PTN series and PTS series. PTN series for the remote monitoring power distributor, the software system u
- ATS：
Product description:
Dual power automatic switch is divided into two series, PTN series and PTS series. PTN series for the remote monitoring power distributor, the software system using embedded solutions, based on multi-threaded RTOS kernel, and supports multi-task, multi-user simultaneous access. The software system is safe and reliable, and supports a variety of TCP / IP protocol stack, including HTTP, SSL, SNMP, TELNET, SSH, SMTP, etc., to meet the high-end computer room, data center software, intelligent distribution and environmental monitoring system needs; PTS series Monitor the power distributor for the local serial port. And the monitoring computer terminal through the serial connection communication, to achieve local proximity fast data access. The PTS series can be connected to the PTN series for remote access.
Technical parameters:
name | technical parameters |
model | PTS1-16I20-1A10E-H1 |
size | 485*202*44.4mm |
socket type | Support IEC C13, C19, UK Standard, Schuko Standard , French Standard, USA Standard, General Standard, Chinese Standard 10A, Chinese Standard 16A etc. |
input | Single Phase, Industrial Waterproof Plug |
output | Optional match, Maximum of output terminal quantity are 14 ways |
switching time | ＜12ms |
typical value | 10ms |
installation | horizontal installation |
functional module | / |

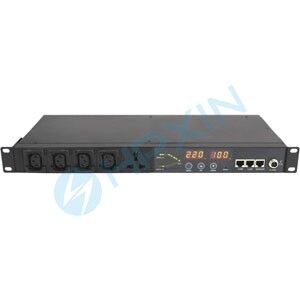

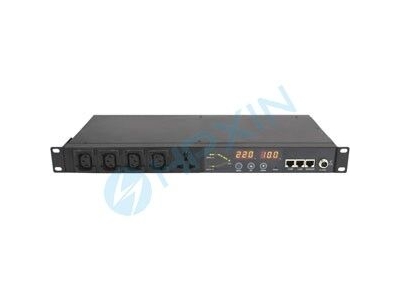

Product pictures:
